Action Buttons

Overview

In Mirata, there are three types of action buttons. The purpose of this article is to understand each type and see a brief example of when to use each type.

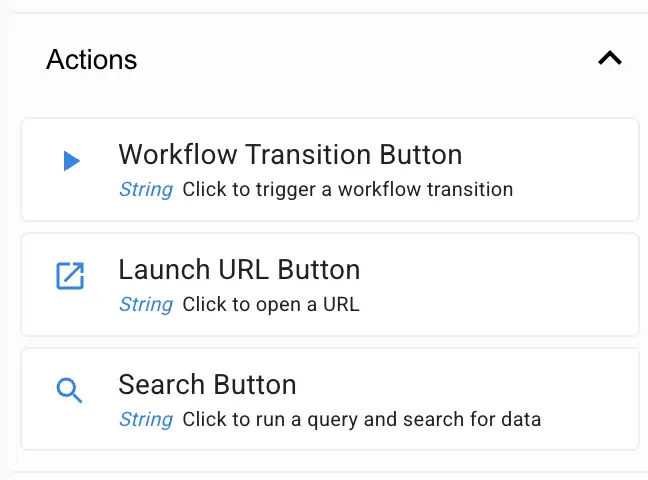

Types of Action Buttons

  1. Workflow Transition

  2. Launch URL

  3. Search (Query)

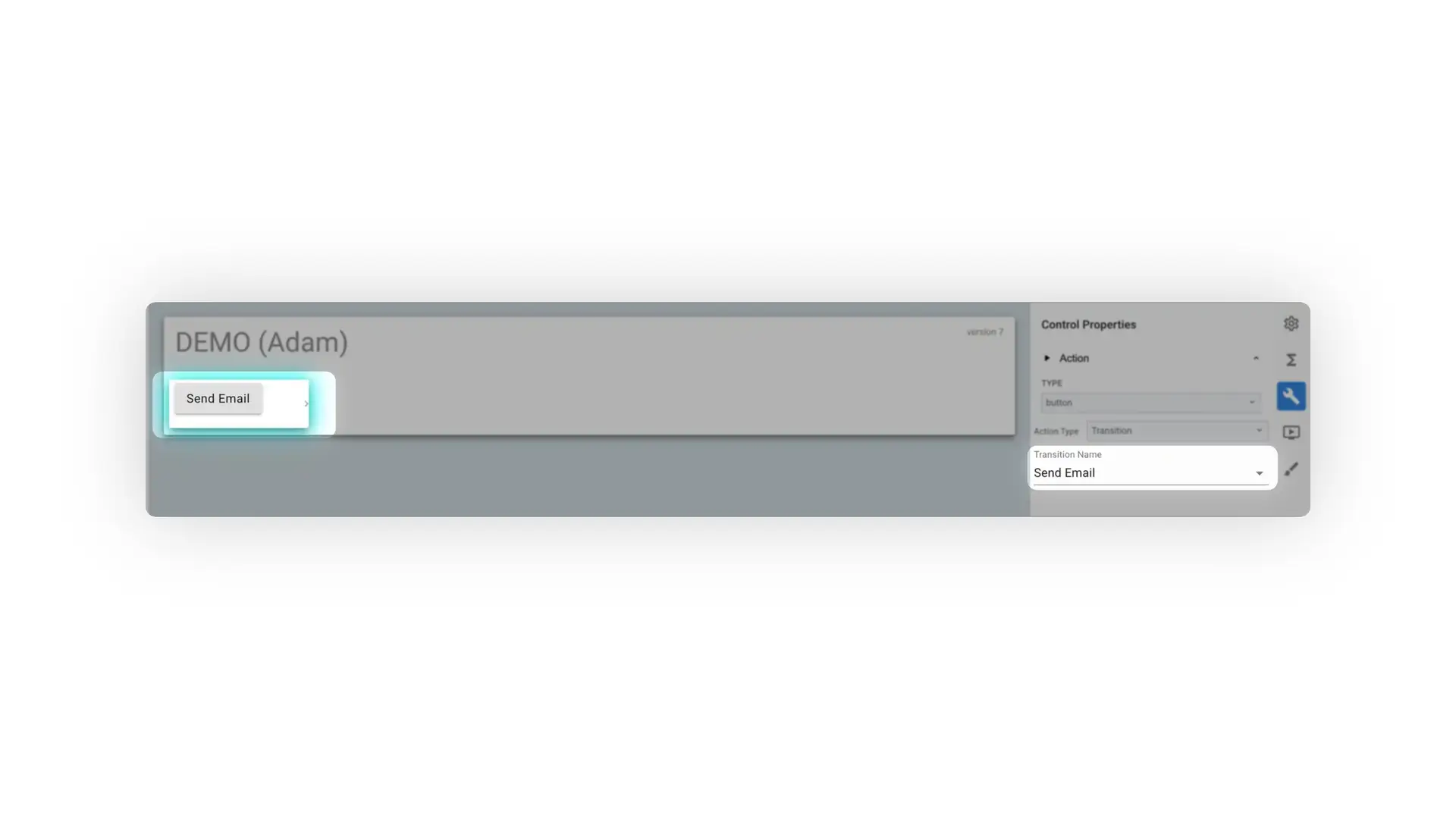

Workflow Transition Button - Example

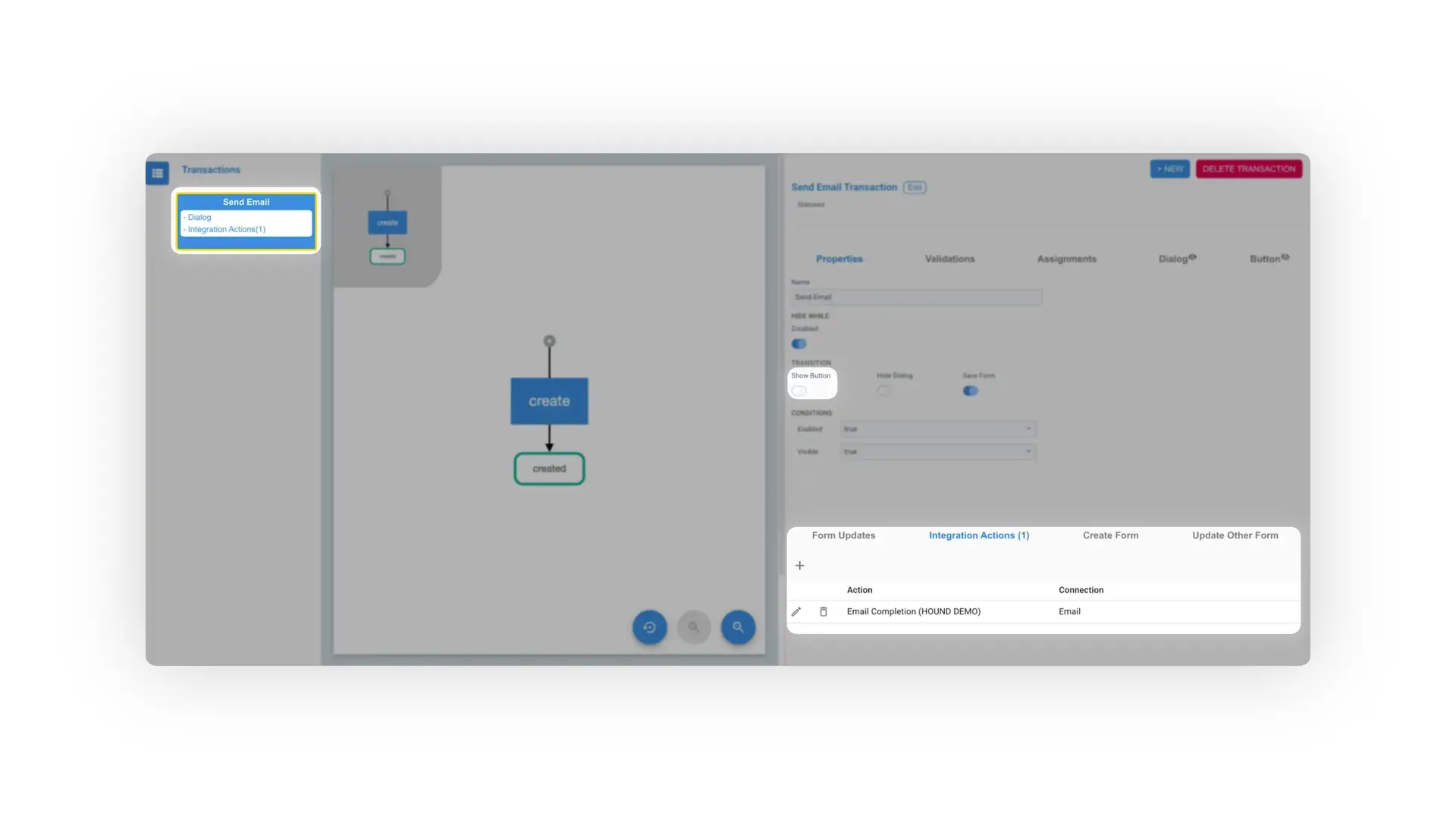

Suppose the designer wanted to have a button to send an email (assume this integration action has already been created). The designer can use a workflow transition button to reference run this integration action.

  1. Create a transaction

    1. Turn off "Show Button" property in main Properties window

  2. Connect the relevant integration action to the workflow

  3. Add a Workflow Transition Button to the form

    1. Name and label this button

    2. Add additional formatting as necessary

  4. Connect the transaction to the button in Control properties

  5. Navigate to Preview and test the button

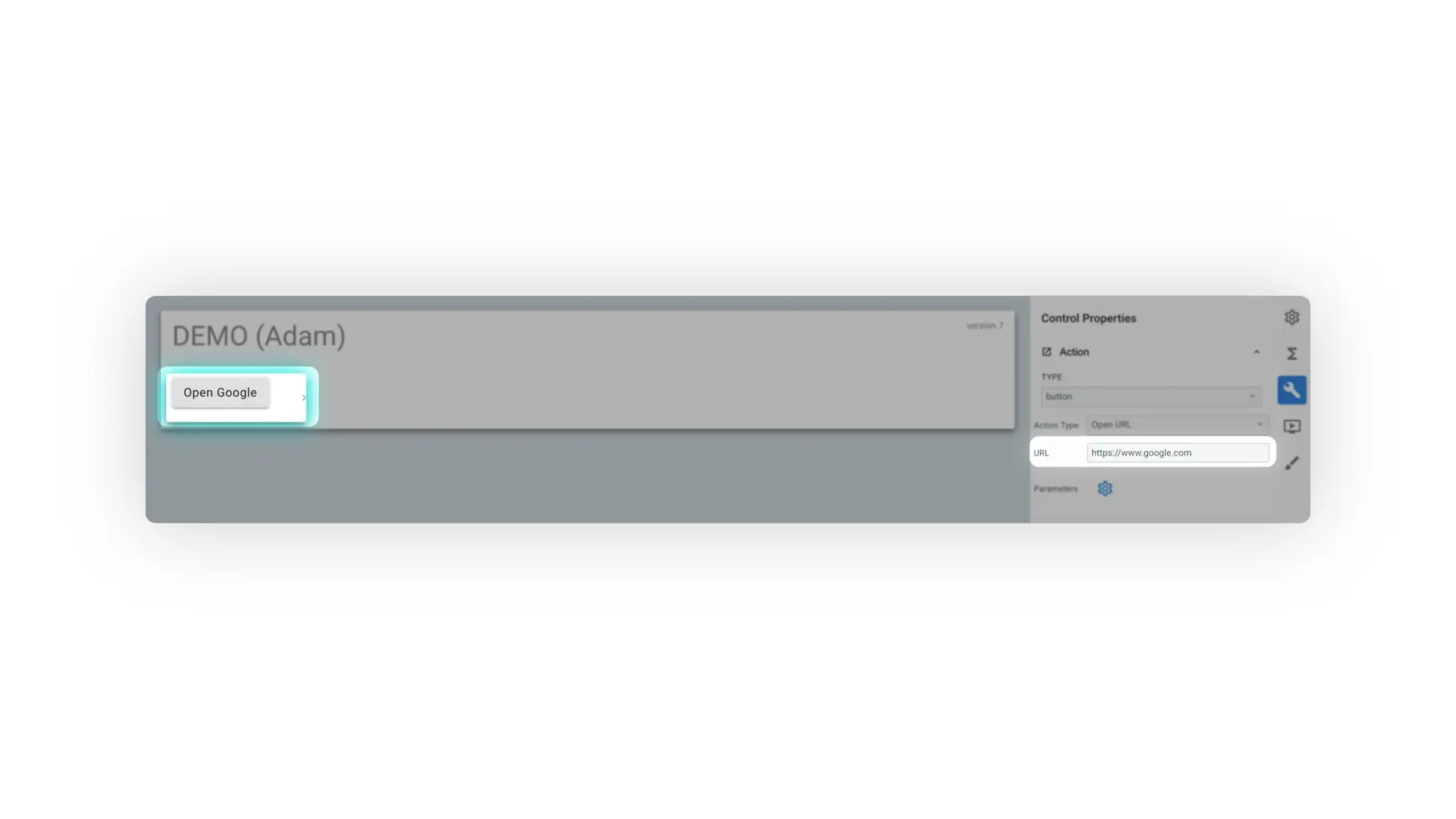

Launch URL Button - Example

Suppose for this example, we wanted a button to navigate the user to Google. To create a URL button, the main thing that is needed is the destination URL. The process for configuring the Launch URL button is as follows:

  1. Place a Launch URL button on the form

  2. Navigate to the Control properties

    1. Name and label this button

    2. Add additional formatting as necessary

  3. Enter the destination URL

  4. Navigate to Inbox to check to see if the link is working properly

    1. Launch URL buttons will not work in Preview mode

Search Button - Example

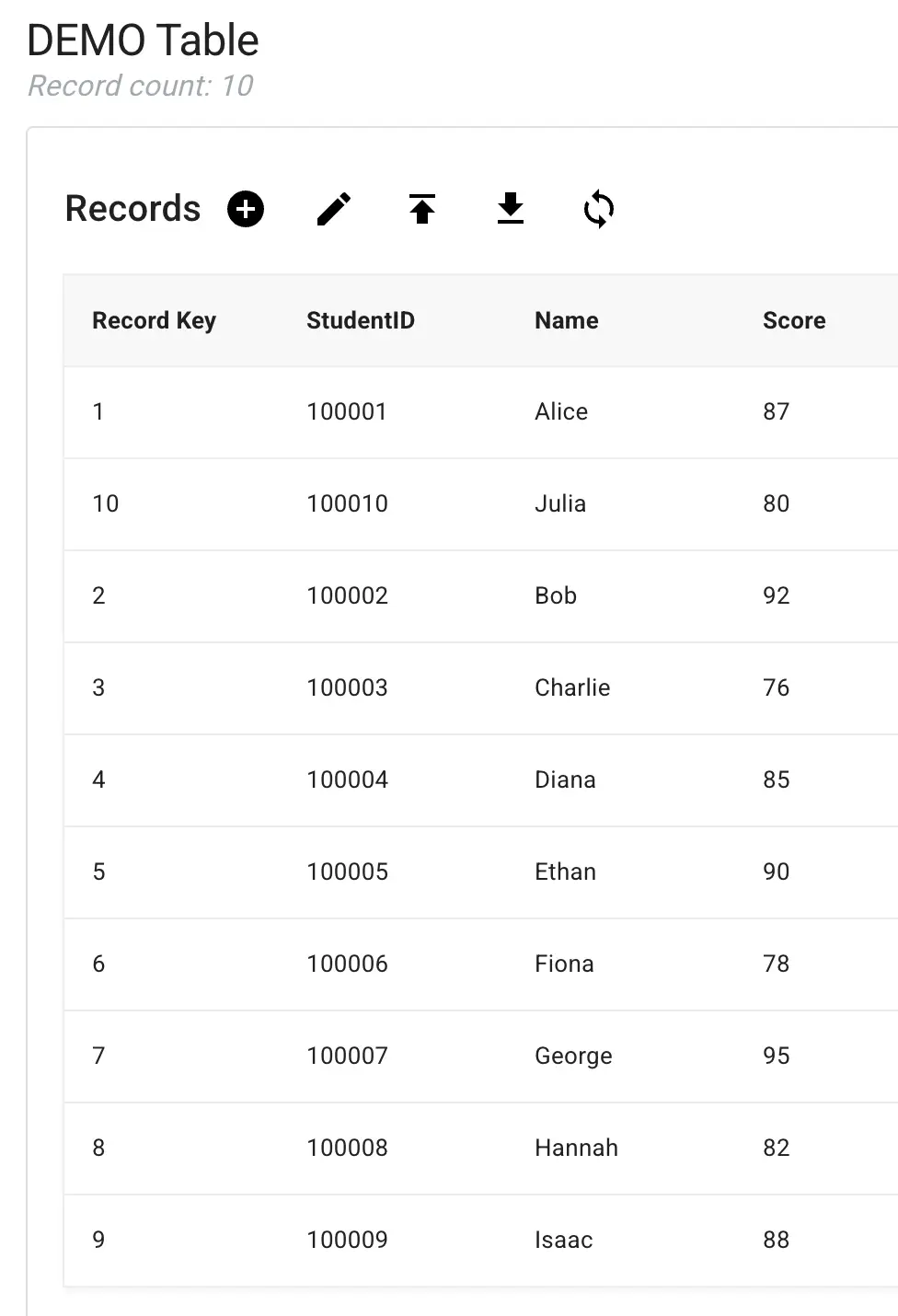

Suppose that there is a table (see below) and the user wants to query the student name and their score based on their StudentID. We can use a combination of a Search Button + a query (integration action) to do so.

To set up this simple Query integration action, there needs to be a query in place that can be connected to the button. This is a simple outline for creating this data table request. For more detailed information about data table requests, please visit another Mirata article.

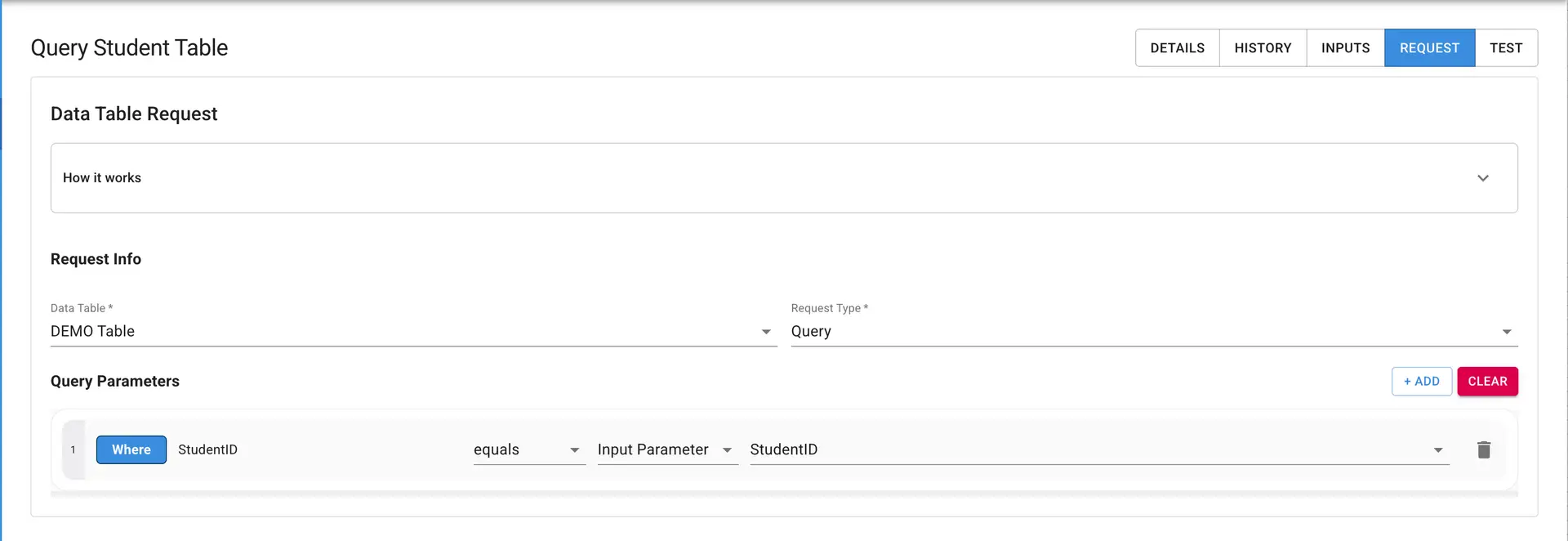

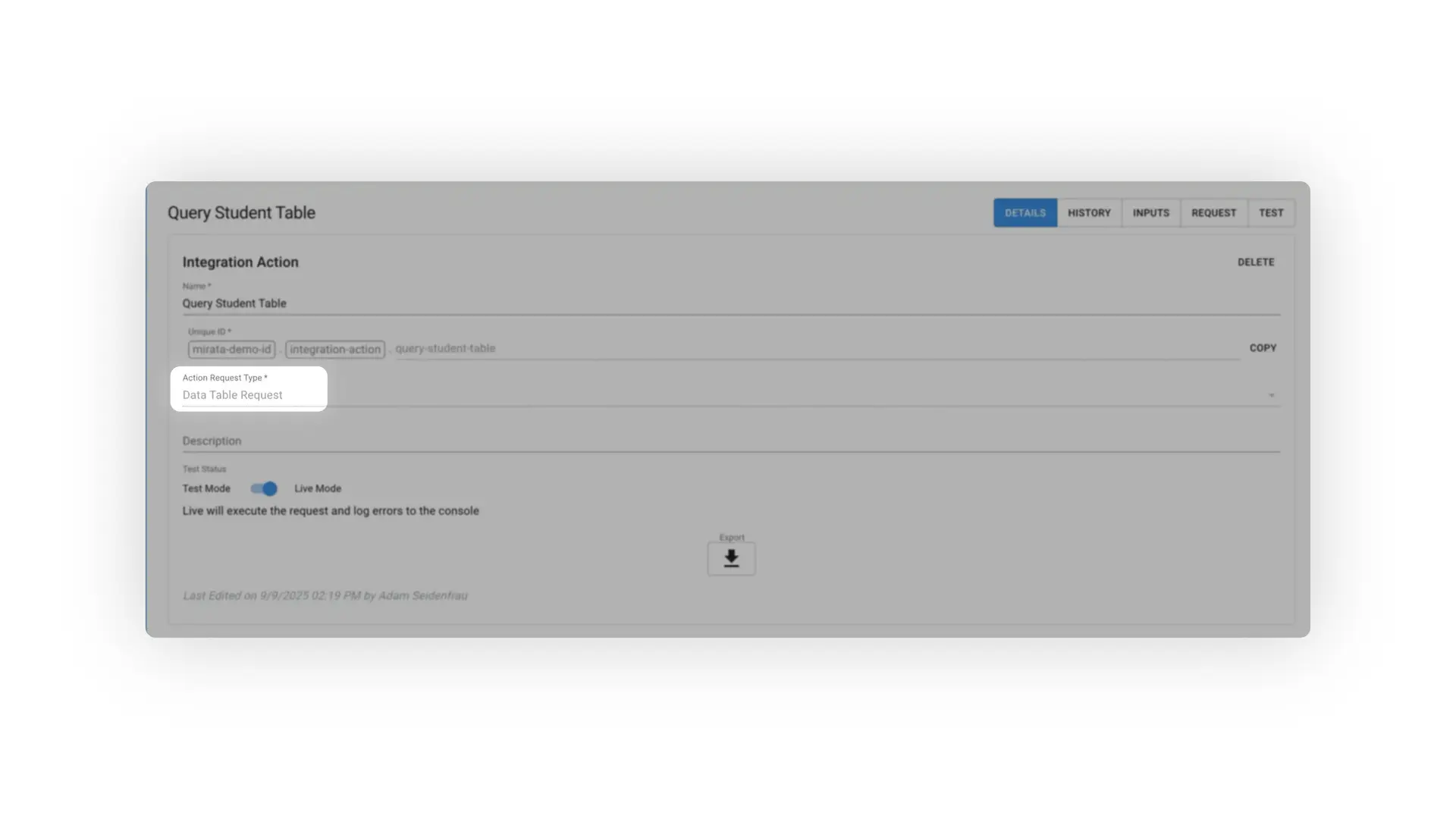

  1. Set the Action Request Type to Data Table Request

  2. On the Request tab

    1. Set the Data Table to the Demo Table

    2. Set the Request Type to Query

    3. Add StudentID as a Query parameter

    4. Change the constant for the parameter to a input parameter (so the user on the form will need to enter the student ID to pull down data)

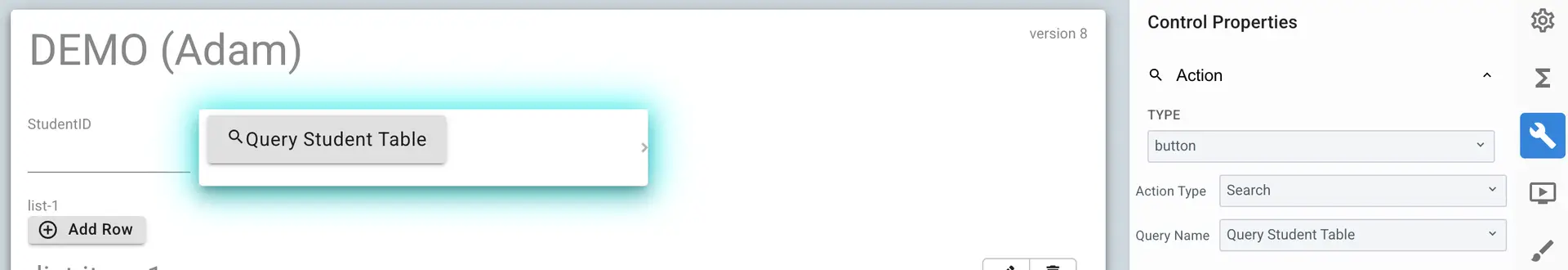

Now that the Query is configured in the Admin tool, there needs to be 1 (text) field on the form for the user to enter the StudentID and then there needs to be a Search Button control that is connected to the query. Make sure to name and label the Search button.

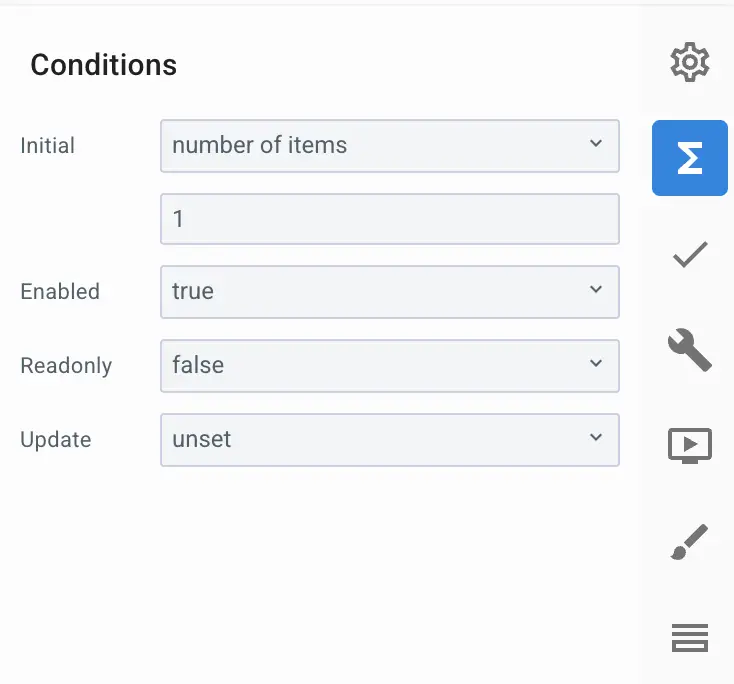

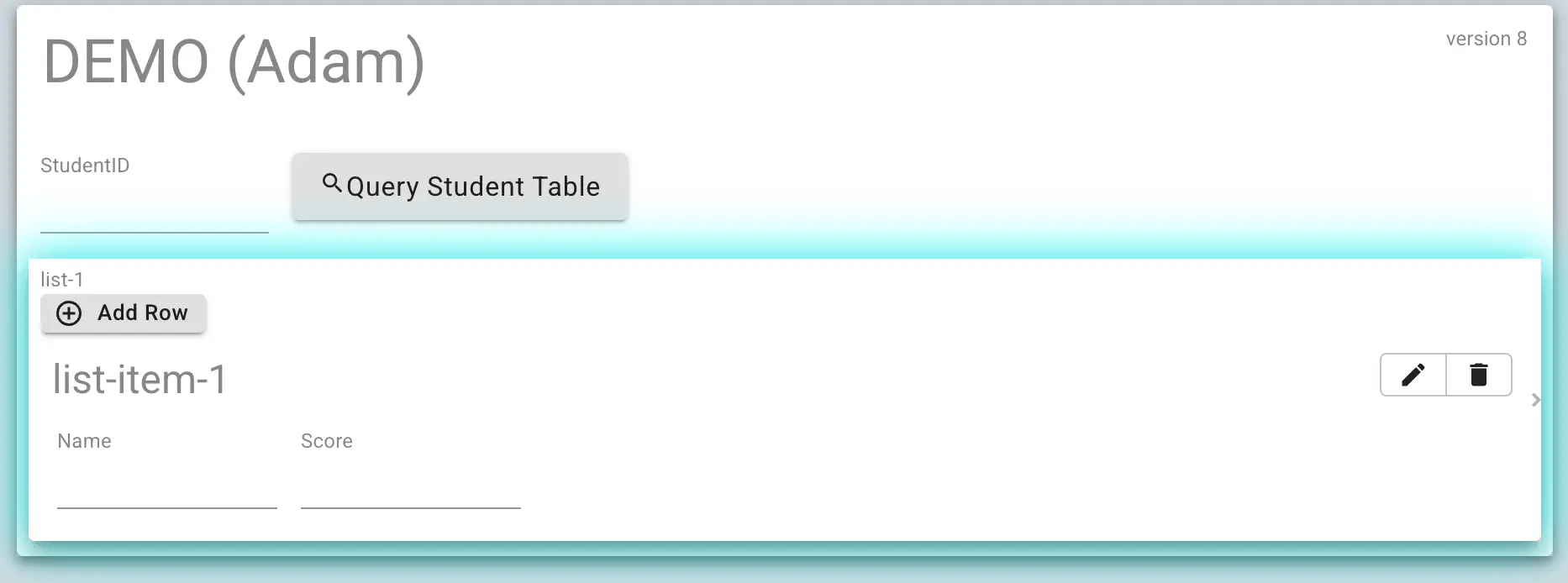

In addition to this, there needs to be a place where the information that is being pulled down from the Query will land. Add a simple list control underneath the button and inside the list item, add two fields; Name (text) and Score (integer) - just like how the fields are named in the data table. It would also be a good idea to make the initial value for the entire list to be "number of items" and set that to 1 (so that the user does not need to click "+ Add Row" to see a new list entry).

It is extremely important to name the fields in the list the same names as the table so that the Query knows which fields to populate when the button is run.

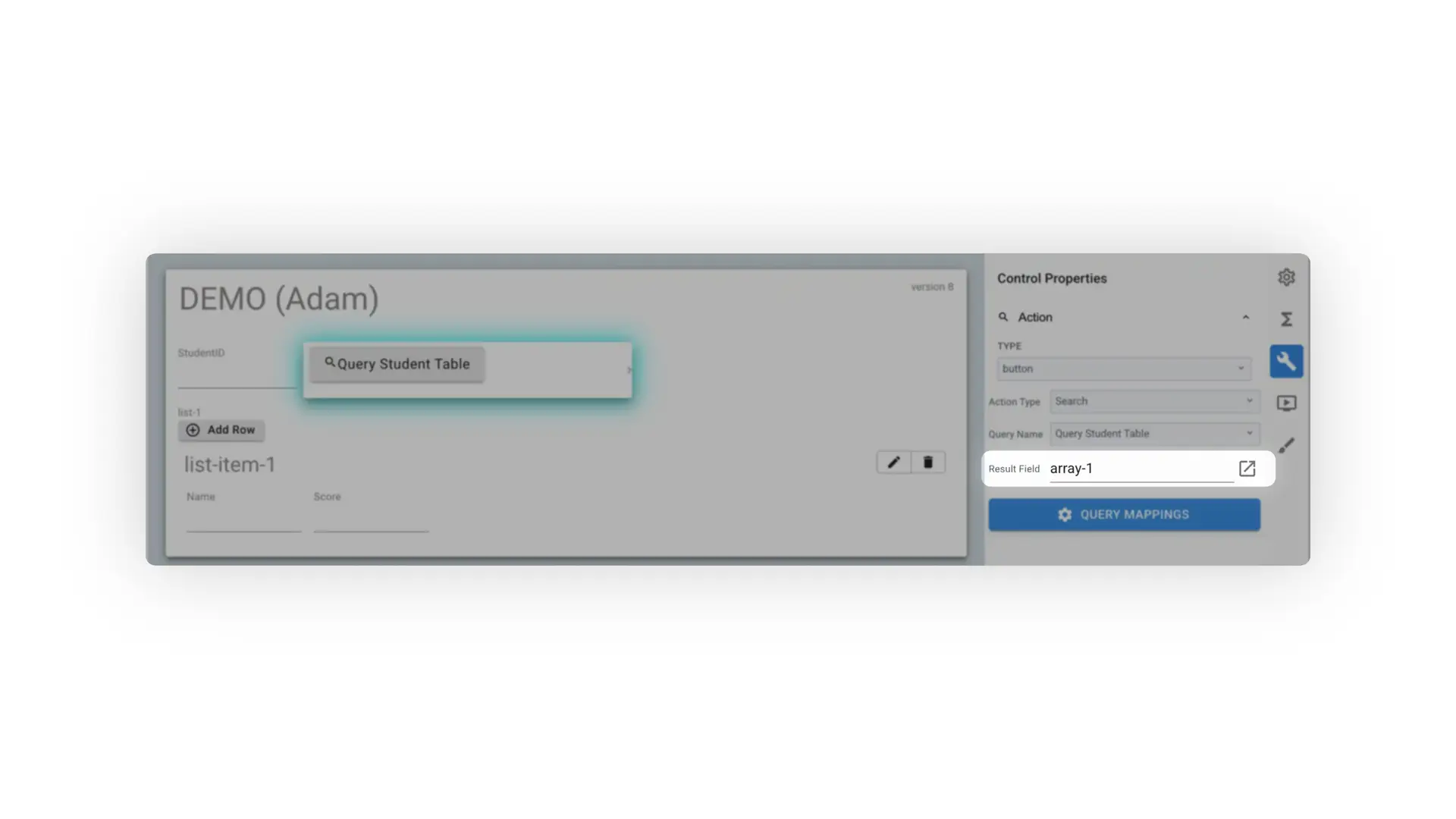

After setting up the list, it must be connected to the Search Button by selecting the entire array as the Result Field in the Control properties section for the button:

The last step before finishing the set-up is to connect the Query Parameter (StudentID) to the StudentID text field on the form. This is the value that is going to be passed through the Query to find the return fields.

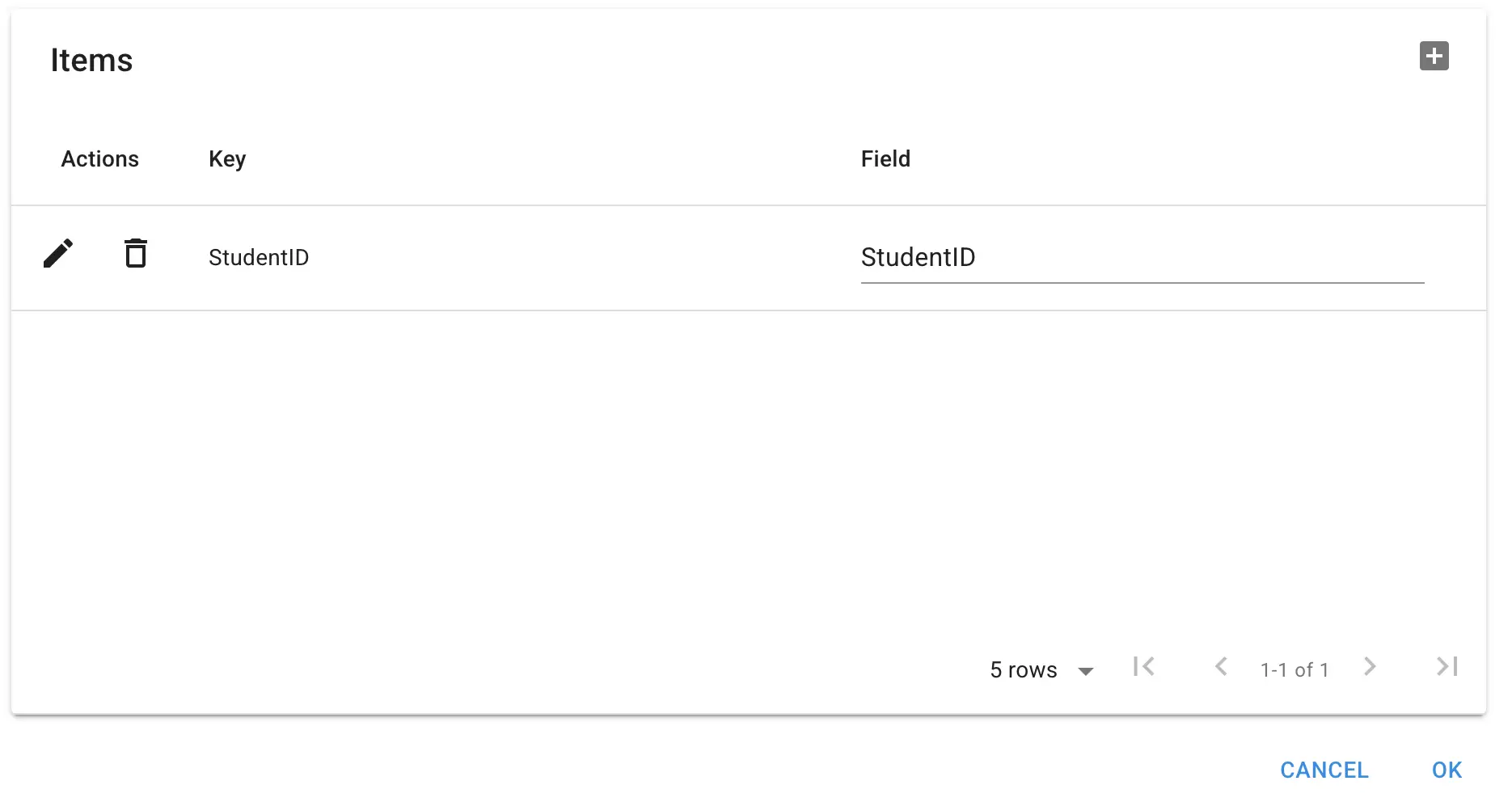

  1. Click on the blue "QUERY MAPPINGS" button on the Control Properties of the Search button

  2. Click on the "+" button on the top right corner of the screen

  3. Type "StudentID" as the Key

  4. Click the grey arrow to the right of the field column to select the StudentID form field

  5. Click the checkbox when done to save this key:field pair

  6. Click "OK" in the bottom right corner

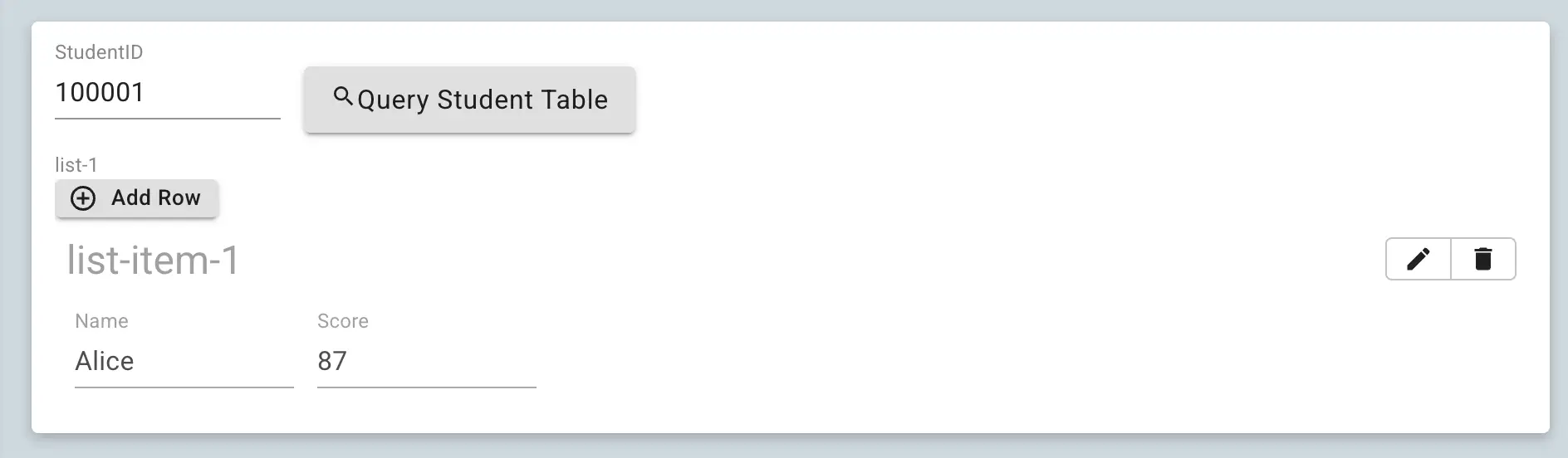

When the Query Mappings are set, navigate to Preview mode to test this. Simply enter one of the StudentID values contained in the backend data table and then click the Search button that was created. The list that was put on the form should populate with the correct student name and score associated with that StudentID.
